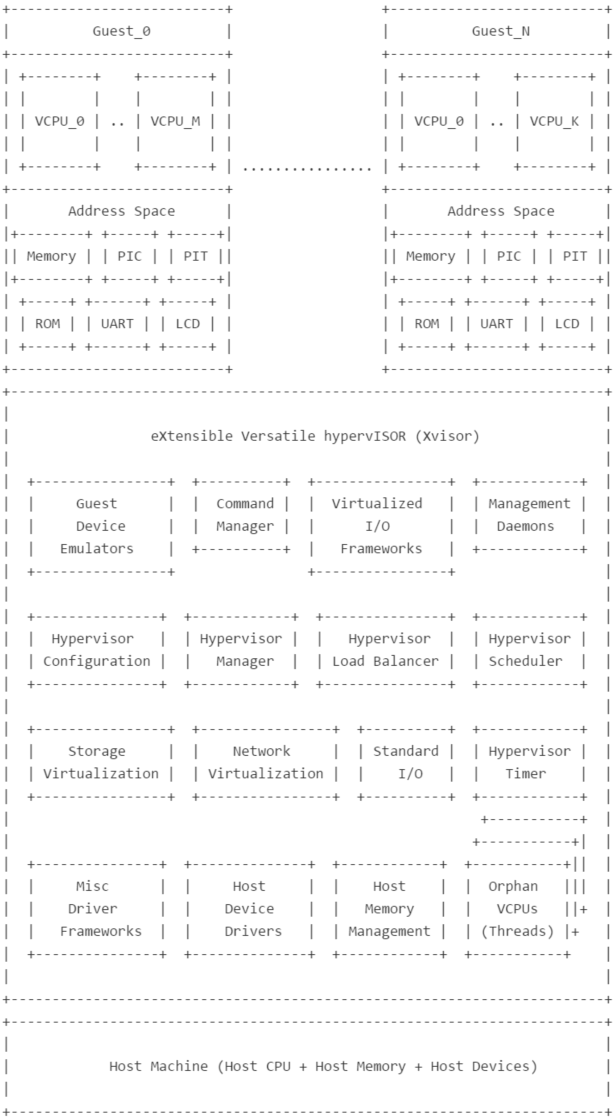

Build source code
- Build source from xvisor-x86_64 github.
sudo aptitude install gcc-multilib git-all cscope iasl cgdb xorriso \
libncurses5-dev m4 flex bison autoconf expect qemu-system-x86 qemu-utils
git clone https://github.com/hschauhan/xvisor-x86_64.git
cd xvisor-x86_64
git checkout --track -b x86-next origin/x86-next
Branch x86-next set up to track remote branch x86-next from origin.
Switched to a new branch 'x86-next'
make ARCH=x86 x86_64_generic-defconfig
make
echo $?
0
cd ..
mkdir -p xvisor-iso/boot/grub
cp xvisor-x86_64/build/vmm.bin xvisor-iso/boot
emacs xvisor-iso/boot/grub/grub.cfg
set timeout=15
set default=0
menuentry "Xvisor x86_64" {
multiboot /boot/vmm.bin earlyprint=vga
boot
}
grub-mkrescue -o xvisor-bootable.iso xvisor-iso/
xorriso 1.4.0 : RockRidge filesystem manipulator, libburnia project.
Drive current: -outdev 'stdio:xvisor-bootable.iso'
Media current: stdio file, overwriteable
Media status : is blank
Media summary: 0 sessions, 0 data blocks, 0 data, 278g free
Added to ISO image: directory '/'='/tmp/grub.iGBw7p'
xorriso : UPDATE : 311 files added in 1 seconds
Added to ISO image: directory '/'='/src3/Xvisor/xvisor-iso'
xorriso : UPDATE : 315 files added in 1 seconds
xorriso : NOTE : Copying to System Area: 512 bytes from file '/usr/lib/grub/i386-pc/boot_hybrid.img'
ISO image produced: 4544 sectors
Written to medium : 4544 sectors at LBA 0
Writing to 'stdio:xvisor-bootable.iso' completed successfully.
ls -l xvisor-bootable.iso
-rw-r--r-- 1 cloud cloud 9306112 Dec 15 04:42 xvisor-bootable.iso
kvm -m 2048M -cpu qemu64,+svm,vendor=AuthenticAMD -cdrom xvisor-bootable.iso -boot d
- Build source form xvisor-0.2.7.tar.gz.
wget http://xhypervisor.org/tarball/xvisor-0.2.7.tar.gz
tar zxvf xvisor-0.2.7.tar.gz
cd xvisor-0.2.7
make ARCH=x86 x86_64_generic-defconfig
make menuconfig
Modify following options:
-
Processor Features --->
[*] AMD-SVM
[*] Intel VT-x
-
Hypervisor Options --->
<*> Networking Framework
-
Library Options --->
(admin) Default user name
(12qwaszx) Default Password
-
Device Drivers --->
Network Device Support --->
[*] Enable Network Device Support
<*> Ethernet driver support --->
< > PHY Device support and infrastructure --->
- Save an Alternate Configuration File
/src3/XVisor/xvisor-0.2.7/build/tmpconf/.config
make
echo $?
0
Build bootable iso image
cd ..
mkdir -p xvisor-iso-0.2.7/boot/grub
cp xvisor-0.2.7/build/vmm.bin xvisor-iso-0.2.7/boot
emacs xvisor-iso-0.2.7/boot/grub/grub.cfg
set timeout=15
set default=0
menuentry "Xvisor x86_64" {
multiboot /boot/vmm.bin earlyprint=vga
boot
}
grub-mkrescue -o xvisor-bootable-0.2.7.iso xvisor-iso-0.2.7/
xorriso 1.4.0 : RockRidge filesystem manipulator, libburnia project.
Drive current: -outdev 'stdio:xvisor-bootable-0.2.7.iso'
Media current: stdio file, overwriteable
Media status : is blank
Media summary: 0 sessions, 0 data blocks, 0 data, 278g free
Added to ISO image: directory '/'='/tmp/grub.xBef8g'
xorriso : UPDATE : 311 files added in 1 seconds
Added to ISO image: directory '/'='/src3/Xvisor/xvisor-iso-0.2.7'
xorriso : UPDATE : 315 files added in 1 seconds
xorriso : NOTE : Copying to System Area: 512 bytes from file '/usr/lib/grub/i386-pc/boot_hybrid.img'
ISO image produced: 4544 sectors
Written to medium : 4544 sectors at LBA 0
Writing to 'stdio:xvisor-bootable-0.2.7.iso' completed successfully.
ls -l xvisor-bootable*.iso
-rw-r--r-- 1 cloud cloud 9306112 Dec 15 04:54 xvisor-bootable-0.2.7.iso
-rw-r--r-- 1 cloud cloud 9306112 Dec 15 04:42 xvisor-bootable.iso
kvm -m 2048M -cpu qemu64,+svm,vendor=AuthenticAMD -cdrom xvisor-bootable-0.2.7.iso -boot d
"Default Password" default "EQuiN0X"
Create virtual disk(s)
Create a virtual disk and install grub2 onto the mbr.
cd /src3/Xvisor
dd if=/dev/zero of=xvisor-disk.img count=40320
40320+0 records in
40320+0 records out
20643840 bytes (21 MB) copied, 0.0619101 s, 333 MB/s
fdisk -l xvisor-disk.img
Disk xvisor-disk.img: 19.7 MiB, 20643840 bytes, 40320 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Necessary inputs required to complete this step
Number of sectors(s) = 63 (choosing default)
Number of heads(h) = 16
Number of cylinders(c) = C / (s * h)
Thus c = 40320 / (63 * 16) = 40
fdisk xvisor-disk.img
Welcome to fdisk (util-linux 2.27.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Device does not contain a recognized partition table.
Created a new DOS disklabel with disk identifier 0x673c0080.
Command (m for help): x
Expert command (m for help): s
Number of sectors (1-63, default 63): 63
Expert command (m for help): h
Number of heads (1-256, default 255): 16
Expert command (m for help): c
Number of cylinders (1-1048576, default 40): 40
Expert command (m for help): r
Command (m for help): w
The partition table has been altered.
Syncing disks.
fdisk xvisor-disk.img
Command (m for help): n
Partition type
p primary (0 primary, 0 extended, 4 free)
e extended (container for logical partitions)
Select (default p):
Using default value p
Partition number (1-4, default 1):
Using default value 1
First sector (2048-40319, default 2048):
Using default value 2048
Last sector, +sectors or +size{K,M,G,T,P} (2048-40319, default 40319):
Using default value 40319
Created a new partition 1 of type 'Linux' and of size 18.7 MiB.
Command (m for help): w
The partition table has been altered.
Syncing disks.
fdisk -l xvisor-disk.img
Disk xvisor-disk.img: 19.7 MiB, 20643840 bytes, 40320 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xd7721429
Device Boot Start End Sectors Size Id Type
xvisor-disk.img1 2048 40319 38272 18.7M 83 Linux
sudo modprobe nbd max_part=8
sudo qemu-nbd -c /dev/nbd0 xvisor-disk.img
ls -l /dev/nbd0*
brw-rw---- 1 root disk 43, 0 Dec 15 16:23 /dev/nbd0
brw-rw---- 1 root disk 43, 1 Dec 15 16:23 /dev/nbd0p1
sudo aptitude install dosfstools
sudo mkfs.vfat /dev/nbd0p1
sudo mount /dev/nbd0p1 /mnt/tmp
sudo grub-install --target=i386-pc --root-directory=/mnt/tmp /dev/nbd0
Installing for i386-pc platform.
Installation finished. No error reported.
sudo cp xvisor-0.2.7/build/vmm.{bin,elf} xvisor-0.2.7/build/system.map /mnt/tmp/boot
sudo emacs /mnt/tmp/boot/grub/grub.cfg
set timeout=15
set default=0
menuentry "Xvisor x86_64" {
multiboot /boot/vmm.bin earlyprint=vga
boot
}
sync;sync
sudo umount /mnt/tmp
sudo qemu-nbd -d /dev/nbd0
/dev/nbd0 disconnected
ls -l /dev/nbd0*
brw-rw---- 1 root disk 43, 0 Dec 15 16:29 /dev/nbd0
sudo rmmod nbd
kvm -m 2048M -cpu qemu64,+svm,vendor=AuthenticAMD -hda xvisor-disk.img
host info
Host Name : x86_64_generic
Boot CPU : 0
Total Online CPUs : 1
Total VAPOOL : 16 MB
Total RAM : 2048 MB
Build guest OS
Preparing to Boot Guest
git clone https://github.com/hschauhan/xvisor-seabios.git
cd xvisor-seabios
cp config-xvisor .config; make
Version: -20160120_222354-Suhu-Archangel
Fixed space: 0xe05b-0x10000 total: 8101 slack: 5 Percent slack: 0.1%
16bit size: 22400
32bit segmented size: 0
32bit flat size: 41792
32bit flat init size: 0
Lowmem size: 2144
f-segment var size: 1600
Linking out/rom16.o
Stripping out/rom16.strip.o
Linking out/rom32seg.o
Stripping out/rom32seg.strip.o
Linking out/rom.o
Prepping out/bios.bin
Total size: 67936 Fixed: 65799 Free: 63136 (used 51.8% of 128KiB rom)
Note: You have to "enforce" locale:Â export LC_ALL=en_US.utf-8 if keyboard mapping is else
echo $?
0
cd ..
dd if=/dev/zero of=xvisor-guest.img bs=1M count=32
fdisk xvisor-guest.img
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Device does not contain a recognized partition table.
Created a new DOS disklabel with disk identifier 0xc667de96.
Command (m for help): n
Partition type
p primary (0 primary, 0 extended, 4 free)
e extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1): 1
First sector (2048-65535, default 2048):
Last sector, +sectors or +size{K,M,G,T,P} (2048-65535, default 65535):
Created a new partition 1 of type 'Linux' and of size 31 MiB.
Command (m for help): w
The partition table has been altered.
Syncing disks.
sudo modprobe nbd max_part=8
sudo qemu-nbd -c /dev/nbd0 xvisor-guest.img
sudo mkfs.vfat /dev/nbd0p1
sudo mount /dev/nbd0p1 /mnt/tmp
sudo cp xvisor-seabios/out/bios.bin /mnt/tmp
sudo umount /mnt/tmp
sudo qemu-nbd -d /dev/nbd0
mkdir /src3/Xvisor/network-xvisor
screen -S xvisor -d -m kvm -m 2048M \
-cpu qemu64,+svm,vendor=AuthenticAMD \
-curses -monitor unix:/src3/Xvisor/network-xvisor/MonSock,server,nowait \
-hda xvisor-disk.img \
-hdb xvisor-guest.img
blockdev list
--------------------------------------------------------------------------------
Name Parent Start LBA Blk Sz Blk Cnt
--------------------------------------------------------------------------------
hda0 --- 0 512 514
hda1 --- 0 512 514
hda0p0 hda0 2048 512 514
hda2 --- 0 2048 514
hda1p0 hda1 2048 512 514
--------------------------------------------------------------------------------
vfs ls /
drwxrwxrwx 0 Dec 15 2015 08:30:15 boot/
vfs mkdir /hda1p0
Error: command vfs failed (code -16)
vfs ls /
drwxrwxrwx 0 Dec 15 2015 08:30:15 boot/
drwxrwxrwx 0 Dec 01 2097 00:02:22 hda1p0/
vfs mount hda1p0 /hda1p0
Trying: ext4 fat
Mounted hda1p0 using fat at /hda1p0
vfs ls /hda1p0
-rwxrwxrwx 131072 Dec 15 2015 08:59:28 bios.bin
total 1
vfs host_load 0xc0e0000 /hda1p0/bios.bin
host: Loaded 0xc0e0000 with 131072 bytes
guest kick guest0
Failed to find guest
Error: command guest failed (code -3)
guest list
-------------------------------------------------------------------------------
ID Name Endianness Device Path
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
vfs umount /hda1p0
Unmount successful
vfs umount /
Unmount successful
shutdown
Stopping Hypervisor Timer
Issuing System Shutdown
Error: shutdown failed (error -1)
echo "quit" | sudo socat - unix-connect:/src3/Xvisor/xvisor/MonSock
QEMU 2.4.0 monitor - type 'help' for more information
(qemu) quit
# sudo aptitude install libgmp3-dev gmpc-dev libmpfr-dev libmpc-dev texinfo
git clone http://review.coreboot.org/p/coreboot
cd coreboot
git submodule update --init --checkout
make help
*** coreboot platform targets ***
Use "make [target] V=1" for extra build debug information
all - Build coreboot
clean - Remove coreboot build artifacts
distclean - Remove build artifacts and config files
doxygen - Build doxygen documentation for coreboot
what-jenkins-does - Run platform build tests (Use CPUS=# for more cores)
printall - print makefile info for debugging
lint / lint-stable - run coreboot lint tools (all / minimal)
gitconfig - set up git to submit patches to coreboot
ctags / ctags-project - make ctags file for all of coreboot or current board
cscope / cscope-project - make cscope.out file for coreboot or current board
*** Kconfig Targets ***
config - Update current config utilising a line-oriented program
nconfig - Update current config utilising a ncurses menu based program
menuconfig - Update current config utilising a menu based program
xconfig - Update current config utilising a QT based front-end
gconfig - Update current config utilising a GTK based front-end
oldconfig - Update current config utilising a provided .config as base
silentoldconfig - Same as oldconfig, but quietly, additionally update deps
defconfig - New config with default answer to all options
savedefconfig - Save current config as ./defconfig (minimal config)
*** Toolchain targets ***
crossgcc - Build coreboot cross-compilers for all platforms
crosstools - Build coreboot cross-compiler and GDB for all platforms
crossgcc-clean - Remove all built coreboot cross-compilers
iasl - Build coreboot IASL compiler (built by all cross targets)
clang - Build coreboot clang compiler
test-toolchain - Reports if toolchain components are out of date
crossgcc-ARCH - Build cross-compiler for specific architecture
crosstools-ARCH - Build cross-compiler with GDB for specific architecture
ARCH can be "i386", "x64", "arm", "aarch64", "mips", "riscv", or "power8"
Use "make [target] CPUS=#" to build toolchain using multiple cores
make crossgcc-x64
Target architecture is now x86_64-elf
echo $?
0
make menuconfig
Mainboard --->
ROM chip size (256 KB) ---> 512 KB
Mainboard model (QEMU armv7 (vexpress-a9)) ---> QEMU x86 i440fx/piix4 (aka qemu -M pc)
Payload --->
Add a payload (SeaBIOS) ---> An ELF executable payload
(payload.elf) Payload path and filename (NEW)
filo.elf
Save
Exit
cd payloads
git clone http://review.coreboot.org/p/filo
cd filo
make menuconfig
Save
Exit
Select "Include Multiboot Header"
Interface Options --->
Deselect the Grub interface and deselect the autoboot.
Filesystems --->
Enable FAT support.
Drivers --->
Disable USB Stack
Enable PCI support.
Use libpayload's storage drivers
Save
Exit
make
echo $?
0
cp build/filo.elf ../../
cd ../../
make
echo $?
0
ls -l build/coreboot.rom
-rw-r--r-- 1 cssu cssu 524288 Jan 22 17:01 build/coreboot.rom
fdisk -l xvisor-guest.img
Disk xvisor-guest.img: 32 MiB, 33554432 bytes, 65536 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x71c9dc1c
Device Boot Start End Sectors Size Id Type
xvisor-guest.img1 2048 65535 63488 31M 83 Linux
sudo mount -o loop,offset=`expr 512 '*' 2048` xvisor-guest.img /mnt/tmp
sudo cp coreboot/build/coreboot.rom /mnt/tmp
sudo umount /mnt/tmp
mkdir /src3/Xvisor/network-xvisor
screen -S xvisor -d -m kvm -m 2048M \
-cpu qemu64,+svm,vendor=AuthenticAMD \
-curses -monitor unix:/src3/Xvisor/network-xvisor/MonSock,server,nowait \
-hda xvisor-disk.img \
-hdb xvisor-guest.img
Boot up guest OS
vfs mount hda1p0 /hda1p0
Trying: ext4 fat
Mounted hda1p0 using fat at /hda1p0
vfs ls /hda1p0
-rwxrwxrwx 131072 Jan 20 2016 22:29:28 bios.bin
-rwxrwxrwx 524288 Jan 25 2016 20:06:19 coreboot.rom
total 2
devtree node copy /guests guest0 /templates/x86_64_generic
guest create guest0
(amd_setup_vm_control:443) IOPM Base physical address: 0x1f5000
(i440fx_emulator_probe:292) i440fx_emulator_probe: 1 busses on this controller.
(i440fx_emulator_probe:317) Success.
Error: failed to create guest0
Error: command guest failed (code -1)
echo 'quit' | sudo socat - unix-connect:/src3/Xvisor/network-xvisor/MonSock
Docs, tools and scripts
ls -l docs/x86
total 44
-rw-r--r-- 1 cssu cssu 10565 Nov 14 20:27 bios_map.txt
-rw-r--r-- 1 cssu cssu 1502 Nov 14 20:27 Building-Coreboot-FILO.txt
-rw-r--r-- 1 cssu cssu 5090 Nov 14 20:27 grub-on-virtual-disk-howto.txt
-rw-r--r-- 1 cssu cssu 68 Nov 14 20:27 vmm.gdb32
-rw-r--r-- 1 cssu cssu 75 Nov 14 20:27 vmm.gdb64
-rw-r--r-- 1 cssu cssu 4758 Nov 14 20:27 x86_64_generic.txt
-rw-r--r-- 1 cssu cssu 279 Nov 14 20:27 x86_TODO
ls -l tests/x86
total 52
drwxr-xr-x 3 cssu cssu 4096 Nov 14 20:27 bios
-rwxr-xr-x 1 cssu cssu 853 Nov 14 20:27 create_hdd_partitions.expt
-rw-r--r-- 1 cssu cssu 266 Nov 14 20:27 guest_init.cmd
-rw-r--r-- 1 cssu cssu 279 Nov 14 20:27 hdd.layout
-rw-r--r-- 1 cssu cssu 10302 Nov 14 20:27 lomount.c
-rwxr-xr-x 1 cssu cssu 12924 Nov 14 20:27 make_x86_setup
drwxr-xr-x 3 cssu cssu 4096 Nov 14 20:27 os
drwxr-xr-x 2 cssu cssu 4096 Nov 14 20:27 scripts
make menuconfig
make
sudo aptitude install gcc-multilib git-all cscope iasl cgdb xorriso \
libncurses5-dev m4 flex bison autoconf expect qemu-system-x86 qemu-utils
$ git clone https://github.com/hschauhan/xvisor-x86_64.git
$ cd xvisor-x86_64
$ git checkout --track -b x86-next origin/x86-next
Branch x86-next set up to track remote branch x86-next from origin.
Switched to a new branch 'x86-next'
!!!!
$ make ARCH=x86 x86_64_generic-defconfig
$ make
$ mkdir -p xvisor-iso/boot/grub
$ cp xvisor-0.2.7/build/vmm.bin xvisor-iso/boot/
$ emacs xvisor-iso/boot/grub/grub.cfg
set timeout=15
set default=0
menuentry "Xvisor x86_64" {
multiboot /boot/vmm.bin earlyprint=vga
boot
}
$ grub-mkrescue -o xvisor-bootable.iso xvisor-iso/
$ qemu-img create xvisor-hd.img 32M
$ kvm -m 2048M -cpu qemu64,+svm,vendor=AuthenticAMD -cdrom xvisor-bootable.iso -hda xvisor-hd.img -boot d -s -serial stdio
$ git clone https://github.com/hschauhan/xvisor-seabios.git
$ cd xvisor-seabios
$ cp config-xvisor .config; make
$ cd ..
$ sudo modprobe nbd max_part=8
$ sudo qemu-nbd -c /dev/nbd0 xvisor-hd.img
$ sudo fdisk /dev/nbd0
n, p, 1, \n, \n
w
$ sudo mkfs.vfat /dev/nbd0p1
$ sudo mount /dev/nbd0p1 /mnt/tmp
$ sudo cp xvisor-seabios/out/bios.bin /mnt/tmp/
$ sudo umount /mnt/tmp
$ sudo qemu-nbd -d /dev/nbd0
$ kvm -m 2048M -cpu qemu64,+svm,vendor=AuthenticAMD -cdrom xvisor-bootable.iso -hda xvisor-hd.img -boot d -s -serial stdio
$ qemu-img create -f raw xvisor-hd.img 32M
$ fdisk xvisor-hd.img
n, p, 1, \n, \n
w
$ sudo losetup /dev/loop0 xvisor-hd.img -o 1048576
$ sudo mkfs.vfat /dev/loop0
#$ gcc -o lomount xvisor-x86_64/tests/x86/lomount.c
$ sudo mount -t vfat -o loop,offset=1048576 xvisor-hd.img /mnt/tmp
$ git clone http://review.coreboot.org/p/coreboot
$ cd coreboot
$ git submodule update --init --checkout
$ cd payloads
$ git clone http://review.coreboot.org/filo.git
$ cd ..
$ make crossgcc
$ sudo aptitude install flex bison libiconv-hook1 make strip-nondeterminism
$ sudo aptitude install cmake
$ more ../00-INDEX
Below is a brief list of all the files in ./xvisor/docs and what
they contain. If you add a documentation file/directory under
./xvisor/docs then please list it here in alphabetical order.
Please try and keep the descriptions small enough to fit on one line.
Thanks --Anup Patel
00-INDEX
- This file.
releases/
- Detailed information about each release.
DesignDoc
- Overview of Xvisor design.
VersionScheme
- Explanation about Xvisor Version Scheme.
CodingStyle
- Expected C coding style in Xvisor.
DriverPorting
- Recommendation for porint driver from Linux to Xvisor.
arm/
- ARM architecture support documentation.
x86/
- x86 architecture support documentation.
$ more x86_TODO
The following, in no specific order, are planned to be done:
1. i8042 probe and detection based on ACPI tables.
2. Support for IDE interface for hard drive.
3. Complete the frame buffer support.
4. All key handling (backspace, up-down, etc.)
5. SMP Support.
... and lots more.
A. grub2
B. Steps to build a bootable image of Xvisor
1. Clone xvisor-x86_64 repo
# git clone git://github.com/hschauhan/xvisor-x86_64.git
2. Build Xvisor with following command:
# make ARCH=x86 x86_64_generic-defconfig
# make
3. Create a directory xvisor-iso _somewhere_.
# mkdir -p xvisor-iso/boot/grub
4. Copy the xvisor image in the ISO directory:
# cp XVISOR_BASE/build/vmm.bin xvisor-iso/boot/
(NOTE: Here XVISOR_BASE is base directory where you pulled
the xvisor tree.)
5. Create a grub configuration file under ISO directory
# emacs xvisor-iso/boot/grub/grub.cfg
CUT AND PASTE FOLLOWING IN IT
-------8<----CUT-START--8<---------------
set timeout=15
set default=0
menuentry "Xvisor x86_64" {
multiboot /boot/vmm.bin earlyprint=vga
boot
}
-------8<----CUT-END----8<---------------
Please copy paste above. A slight mistake won't
boot your system.
6. Create a ISO to boot
# grub-mkrescue -o bootable.iso xvisor-iso/
7. Boot the image
# qemu-system-x86_64 -cpu qemu64,+svm,vendor=AuthenticAMD -cdrom bootable.iso -hda xvisor-x86.disk -m 1024M -boot d -s -serial stdio
|
