Raspberry Cross Compiler

Build environment

We need following components to build Embedded Linux software for Raspberry Pi using buildroot.

Install dependencies

Compile qemu-kernel-img

qemu-rpi-kernel
https://github.com/johnlane
KernelBuildingForRaspberryPi
wget https://github.com/dhruvvyas90/qemu-rpi-kernel/raw/master/tools/build-kernel-qemu
cat build-kernel-qemu
#!/bin/bash
#
# Build ARM kernel 4.1.7 for QEMU Raspberry Pi Emulation
#
#######################################################

TOOLCHAIN=arm-linux-gnueabihf

sudo apt-get update && sudo apt-get install git libncurses5-dev gcc-arm-linux-gnueabihf
git clone https://github.com/raspberrypi/linux.git
cd linux
# checking out 4.1.7+ branch - change it if you want to change kernel version
# for kernel specific hash, have a looks at : https://github.com/raspberrypi/linux/commits/rpi-4.1.y
# git checkout 77798915750db46f10bb449e1625d6368ea42e25
make ARCH=arm versatile_defconfig
cat >> .config << EOF
CONFIG_CROSS_COMPILE="$TOOLCHAIN"
CONFIG_CPU_V6=y
CONFIG_ARM_ERRATA_411920=y
CONFIG_ARM_ERRATA_364296=y
CONFIG_AEABI=y
CONFIG_OABI_COMPAT=y
CONFIG_PCI=y
CONFIG_SCSI=y
CONFIG_SCSI_SYM53C8XX_2=y
CONFIG_BLK_DEV_SD=y
CONFIG_BLK_DEV_SR=y
CONFIG_DEVTMPFS=y
CONFIG_DEVTMPFS_MOUNT=y
CONFIG_TMPFS=y
CONFIG_INPUT_EVDEV=y
CONFIG_EXT3_FS=y
CONFIG_EXT4_FS=y
CONFIG_VFAT_FS=y
CONFIG_NLS_CODEPAGE_437=y
CONFIG_NLS_ISO8859_1=y
CONFIG_FONT_8x16=y
CONFIG_LOGO=y
CONFIG_VFP=y
CONFIG_CGROUPS=y
EOF

make -j 4 -k ARCH=arm CROSS_COMPILE=${TOOLCHAIN}- menuconfig
make -j 4 -k ARCH=arm CROSS_COMPILE=${TOOLCHAIN}- bzImage
cd ..
cp linux/arch/arm/boot/zImage kernel-qemu
wget https://github.com/dhruvvyas90/qemu-rpi-kernel/raw/master/tools/linux-arm.patch
cat linux-arm.patch
diff --git a/arch/arm/mach-versatile/Kconfig b/arch/arm/mach-versatile/Kconfig
index 1dba368..82fa543 100644
--- a/arch/arm/mach-versatile/Kconfig
+++ b/arch/arm/mach-versatile/Kconfig
@@ -4,7 +4,6 @@ menu "Versatile platform type"
 config ARCH_VERSATILE_PB
 	bool "Support Versatile Platform Baseboard for ARM926EJ-S"
 	default y
-	select CPU_ARM926T
 	select MIGHT_HAVE_PCI
 	help
 	  Include support for the ARM(R) Versatile Platform Baseboard
@@ -12,7 +11,6 @@ config ARCH_VERSATILE_PB

 config MACH_VERSATILE_AB
 	bool "Support Versatile Application Baseboard for ARM926EJ-S"
-	select CPU_ARM926T
 	help
 	  Include support for the ARM(R) Versatile Application Baseboard
 	  for the ARM926EJ-S.
diff --git a/arch/arm/mm/Kconfig b/arch/arm/mm/Kconfig
index bb263d8..1e6ce77 100644
--- a/arch/arm/mm/Kconfig
+++ b/arch/arm/mm/Kconfig
@@ -71,7 +71,7 @@ config CPU_ARM9TDMI

 # ARM920T
 config CPU_ARM920T
-	bool "Support ARM920T processor" if (ARCH_MULTI_V4T && ARCH_INTEGRATOR)
+	bool "Support ARM920T processor" if ARCH_INTEGRATOR || ARCH_VERSATILE_PB || ARCH_VERSATILE_AB
 	select CPU_32v4T
 	select CPU_ABRT_EV4T
 	select CPU_CACHE_V4WT
@@ -89,7 +89,7 @@ config CPU_ARM920T

 # ARM922T
 config CPU_ARM922T
-	bool "Support ARM922T processor" if (ARCH_MULTI_V4T && ARCH_INTEGRATOR)
+	bool "Support ARM922T processor" if ARCH_INTEGRATOR || ARCH_VERSATILE_PB || ARCH_VERSATILE_AB
 	select CPU_32v4T
 	select CPU_ABRT_EV4T
 	select CPU_CACHE_V4WT
@@ -127,7 +127,7 @@ config CPU_ARM925T

 # ARM926T
 config CPU_ARM926T
-	bool "Support ARM926T processor" if (!ARCH_MULTIPLATFORM || ARCH_MULTI_V5) && (ARCH_INTEGRATOR || MACH_REALVIEW_EB)
+	bool "Support ARM926T processor" if ARCH_INTEGRATOR || MACH_REALVIEW_EB || ARCH_VERSATILE_PB || ARCH_VERSATILE_AB
 	select CPU_32v5
 	select CPU_ABRT_EV5TJ
 	select CPU_CACHE_VIVT
@@ -135,6 +135,7 @@ config CPU_ARM926T
 	select CPU_CP15_MMU
 	select CPU_PABRT_LEGACY
 	select CPU_TLB_V4WBI if MMU
+	depends on !CPU_V6 && !CPU_V7
 	help
 	  This is a variant of the ARM920.  It has slightly different
 	  instruction sequences for cache and TLB operations.  Curiously,
@@ -358,7 +359,7 @@ config CPU_PJ4B

 # ARMv6
 config CPU_V6
-	bool "Support ARM V6 processor" if (!ARCH_MULTIPLATFORM || ARCH_MULTI_V6) && (ARCH_INTEGRATOR || MACH_REALVIEW_EB || MACH_REALVIEW_PBX || MACH_BCM2708)
+	bool "Support ARM V6 processor" if ARCH_INTEGRATOR || MACH_REALVIEW_EB || MACH_REALVIEW_PBX || MACH_BCM2708 || ARCH_VERSATILE_PB || ARCH_VERSATILE_AB
 	select CPU_32v6
 	select CPU_ABRT_EV6
 	select CPU_CACHE_V6
diff --git a/drivers/mmc/host/Kconfig b/drivers/mmc/host/Kconfig
index 1af139a..fd51e26 100644
--- a/drivers/mmc/host/Kconfig
+++ b/drivers/mmc/host/Kconfig
@@ -6,7 +6,7 @@ comment "MMC/SD/SDIO Host Controller Drivers"

 config MMC_BCM2835
 	tristate "MMC support on BCM2835"
-	depends on MACH_BCM2708 || MACH_BCM2709 || ARCH_BCM2835
+	depends on MACH_BCM2708 || MACH_BCM2709 || ARCH_BCM2835 || ARCH_VERSATILE_PB || ARCH_VERSATILE_AB
 	help
 	  This selects the MMC Interface on BCM2835.

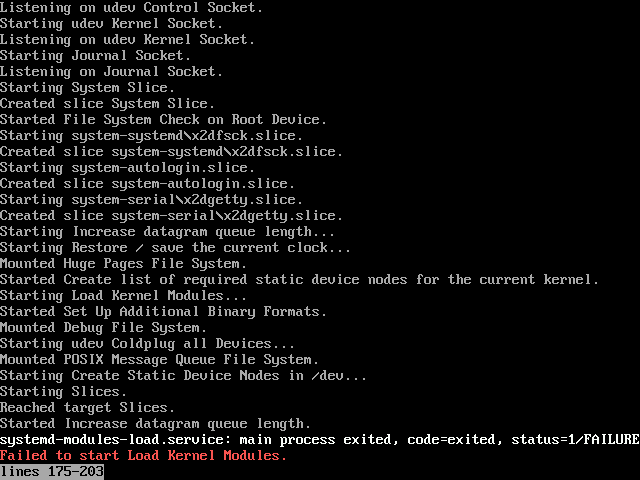

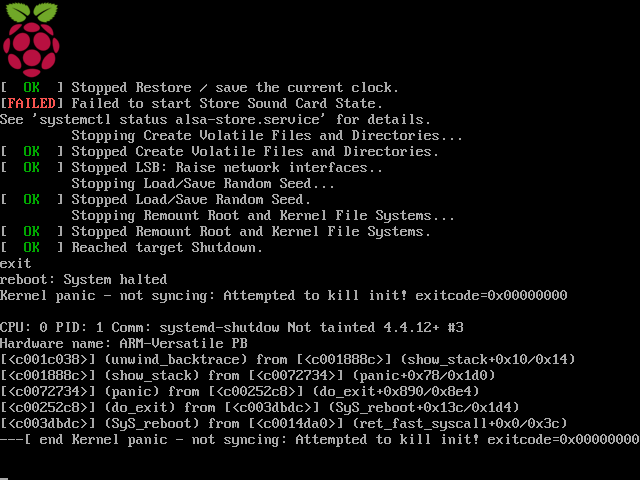

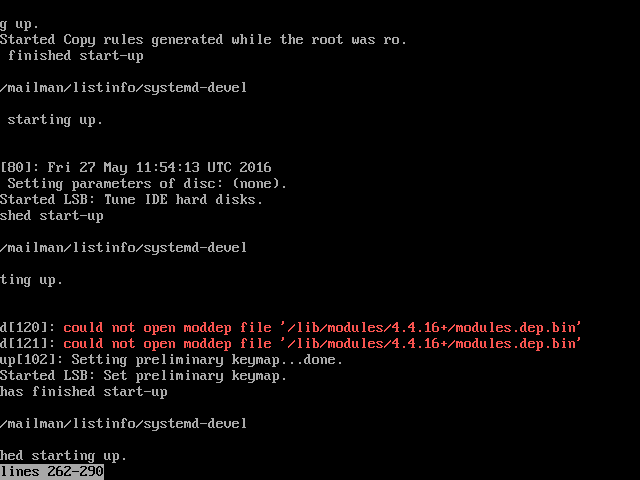

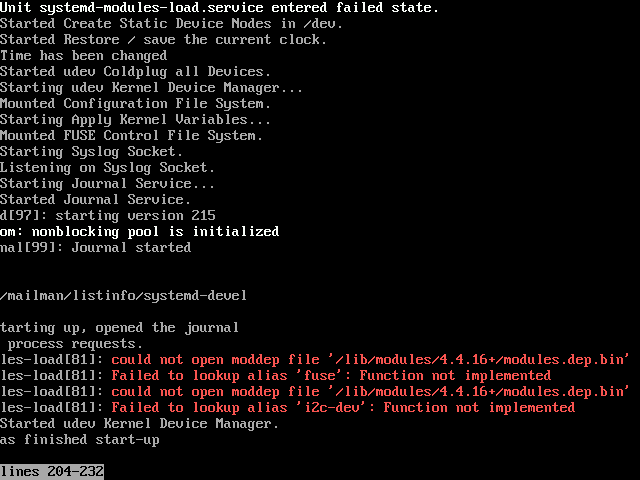

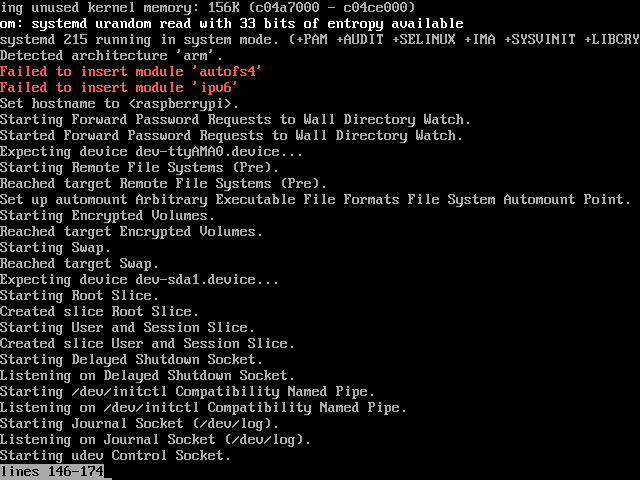

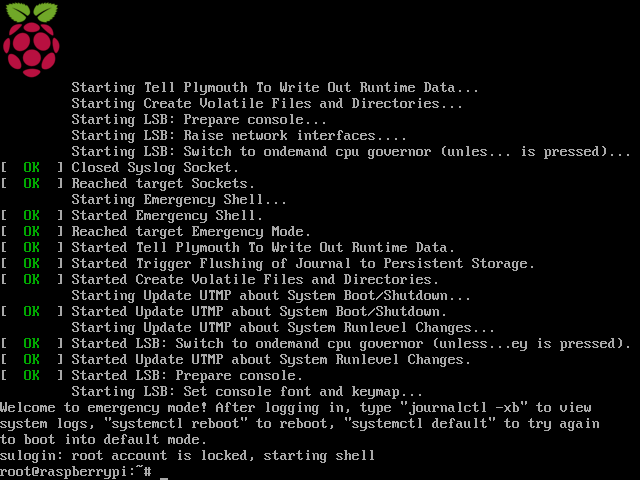

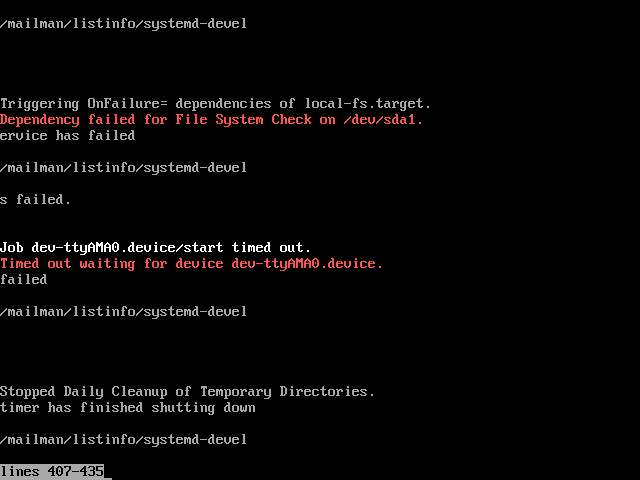

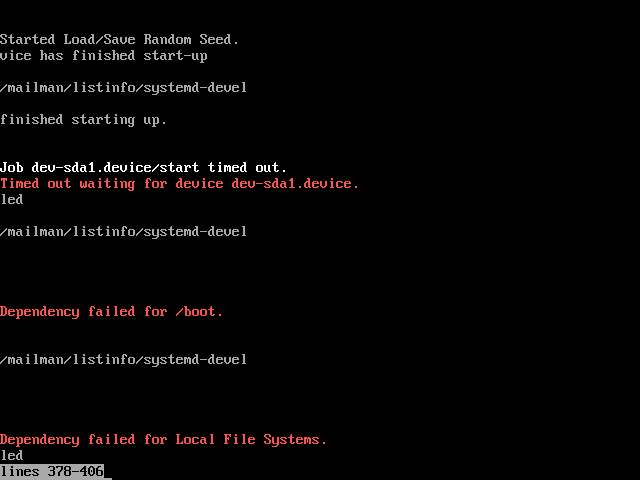

troubleshooting

Compile QEMU raspi

git clone https://github.com/0xabu/qemu.git -b raspi
# git submodule update --init dtc
sudo aptitude install libfdt-dev
./configure
...
tcg debug enabled no
gprof enabled     no
sparse enabled    no
strip binaries    yes
profiler          no
static build      no
pixman            system
SDL support       no
GTK support       no
GTK GL support    no
GNUTLS support    no
GNUTLS hash       no
libgcrypt         no
nettle            no
libtasn1          no
VTE support       no
curses support    no
virgl support     no
curl support      no
mingw32 support   no
Audio drivers     oss
Block whitelist (rw)
Block whitelist (ro)
VirtFS support    no
VNC support       yes
VNC SASL support  no
VNC JPEG support  yes
VNC PNG support   yes
xen support       no
brlapi support    no
bluez  support    no
Documentation     yes
PIE               yes
vde support       no
netmap support    no
Linux AIO support no
ATTR/XATTR support yes
Install blobs     yes
KVM support       yes
RDMA support      no
TCG interpreter   no
fdt support       yes
preadv support    yes
fdatasync         yes
madvise           yes
posix_madvise     yes
sigev_thread_id   yes
uuid support      yes
libcap-ng support no
vhost-net support yes
vhost-scsi support yes
Trace backends    log
spice support     no
rbd support       no
xfsctl support    no
smartcard support no
libusb            no
usb net redir     no
OpenGL support    no
OpenGL dmabufs    no
libiscsi support  no
libnfs support    no
build guest agent yes
QGA VSS support   no
QGA w32 disk info no
QGA MSI support   no
seccomp support   no
coroutine backend ucontext
coroutine pool    yes
GlusterFS support no
Archipelago support no
gcov              gcov
gcov enabled      no
TPM support       yes
libssh2 support   no
TPM passthrough   yes
QOM debugging     yes
vhdx              yes
lzo support       no
snappy support    no
bzip2 support     no
NUMA host support no
tcmalloc support  no
jemalloc support  no
avx2 optimization yes
sudo aptitude install libcurses-ocaml-dev libsdl-ocaml-dev libvdeplug-dev libusb-ocaml-dev libssh2-1-dev libnfs-dev libiscsi-dev
./configure --target-list=arm-softmmu,arm-linux-user
...
tcg debug enabled no
gprof enabled     no
sparse enabled    no
strip binaries    yes
profiler          no
static build      no
pixman            system
SDL support       yes
GTK support       no
GTK GL support    no
GNUTLS support    no
GNUTLS hash       no
libgcrypt         yes
nettle            no
libtasn1          no
VTE support       no
curses support    yes
virgl support     no
curl support      no
mingw32 support   no
Audio drivers     oss
Block whitelist (rw)
Block whitelist (ro)
VirtFS support    no
VNC support       yes
VNC SASL support  no
VNC JPEG support  yes
VNC PNG support   yes
xen support       no
brlapi support    no
bluez  support    no
Documentation     yes
PIE               yes
vde support       yes
netmap support    no
Linux AIO support no
ATTR/XATTR support yes
Install blobs     yes
KVM support       yes
RDMA support      no
TCG interpreter   no
fdt support       yes
preadv support    yes
fdatasync         yes
madvise           yes
posix_madvise     yes
sigev_thread_id   yes
uuid support      yes
libcap-ng support no
vhost-net support yes
vhost-scsi support yes
Trace backends    log
spice support     no
rbd support       no
xfsctl support    no
smartcard support no
libusb            yes
usb net redir     no
OpenGL support    no
OpenGL dmabufs    no
libiscsi support  yes
libnfs support    yes
build guest agent yes
QGA VSS support   no
QGA w32 disk info no
QGA MSI support   no
seccomp support   no
coroutine backend ucontext
coroutine pool    yes
GlusterFS support no
Archipelago support no
gcov              gcov
gcov enabled      no
TPM support       yes
libssh2 support   yes
TPM passthrough   yes
QOM debugging     yes
vhdx              yes
lzo support       no
snappy support    no
bzip2 support     no
NUMA host support no
tcmalloc support  no
jemalloc support  no
avx2 optimization yes
make -j$(nproc)
echo $?
0
sudo make install
cat Rpi2-qemu-2016-08-07.sh
#! /bin/bash

qemu-system-arm -M raspi2 \
     -kernel qemu-boot/kernel-qemu-4.4.16.v3 \
     -append "rw earlyprintk loglevel=8 dwc_otg.lpm_enable=0 console=ttyAMA0,115200 console=tty1 root=/dev/sda2 rootfstype=ext4 selinux=0 enforcing=0" \
     -serial stdio \
     -drive "file=2016-08-02-raspbian-jessie.img,format=raw"
